Neptune V Lighting Pole

A striking modern architectural form urban lamp post with adjustable LED power output, exclusively designed for municipal parks, amusement and recreation parks, streets, parking lots, public squares, and more. Rectangular profile and elegant column form can be used as a complementary part of the building’s outdoor area or landscape area.

Customizable optic and double arm options are available according to the application zone and requested asymmetrical or symmetrical light distribution.  Modern outdoor lighting pole Neptune V has IP66, IK08 and is available in insolation class I. The luminaire deploys high-performance, 3 different (3000K, 4000K, 6500K) LED temperature and DALI dimmable control options.

GET QUOTE
PRODUCT FAMILY:  Neptune
CATEGORY: Urban Light

SHARE

Download Broucher

PRODUCT DETAILS

  • Corrosion-resistant aluminum body
  • Chromate conversion pretreatment
  • Electrostatic powder coating
  • Stainless steel screws (grade 304)
  • Mechanical impact resistance IK08
  • Protection Grade IP66
  • Electrical installation Class I
  • Poles are supplied with anchorage
  • Flange covers can be ordered separately.
STANDARDS
IP66
OPTIONS
ALTERNATIVE COLOUR
Color Image  7016         Anthracite Grey
Color Image  9005        Black
Color Image  9006        White Aluminium
Color Image  7022        Umbra Grey
Color Image  9016        White
Color Image  Ral           Optional

VERSIONS

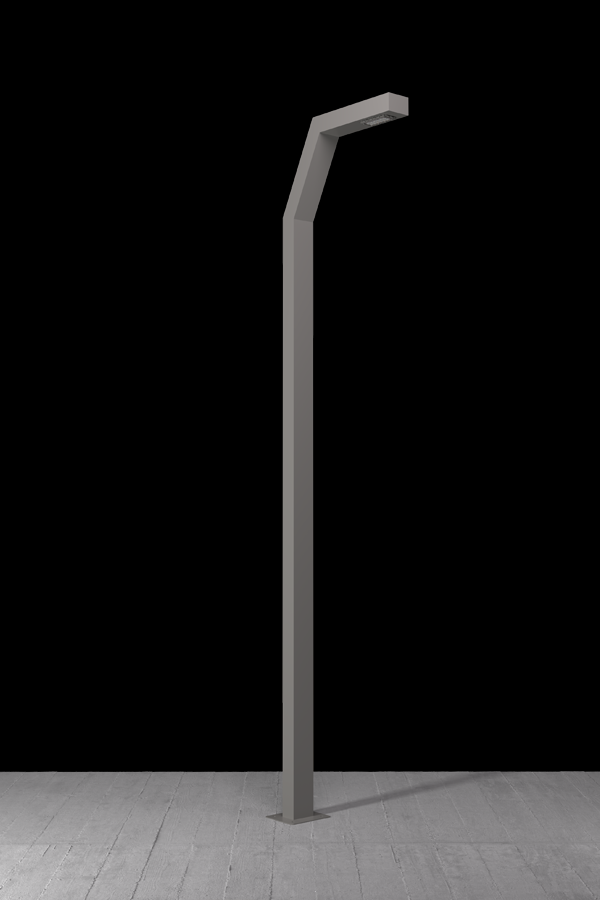

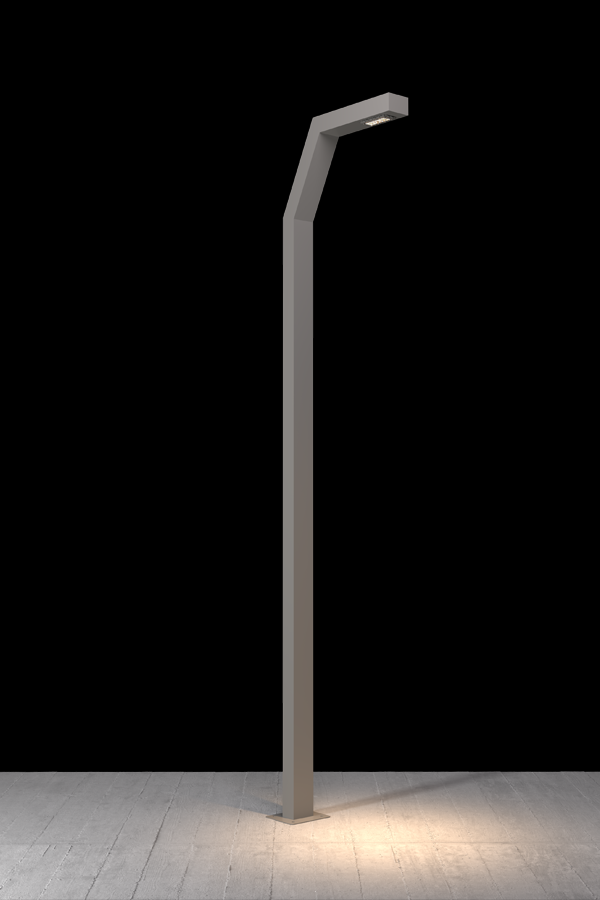

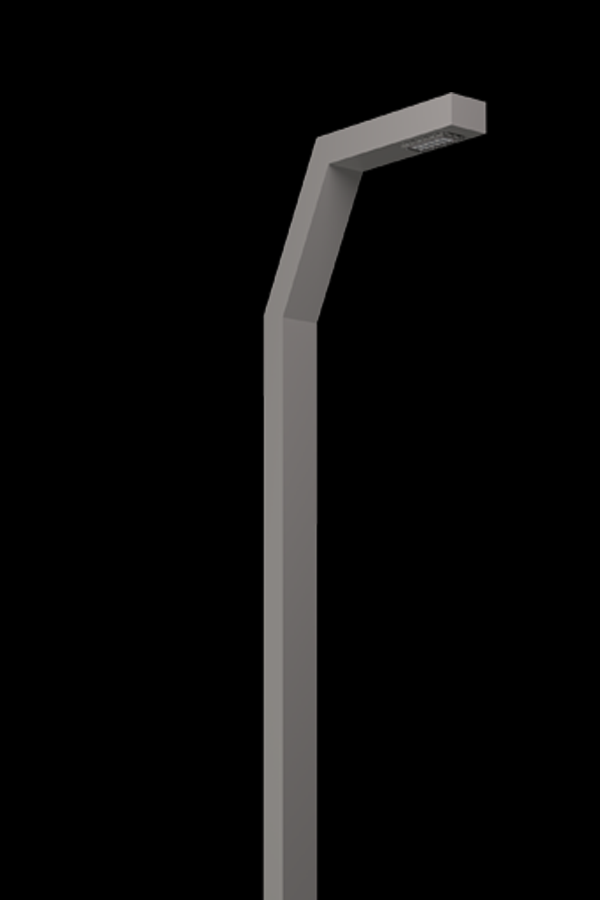

SINGLE LIGHT POLE – V DESIGN
Pole Height ( mm ) System Power ( w ) Light Color (cct )
LGT.10.106.01 3.000 36 3.000K – 4.000K – 6.500K
LGT.10.106.02 4.000 36 3.000K – 4.000K – 6.500K
LGT.10.106.03 5.000 72 3.000K – 4.000K – 6.500K
LGT.10.106.04 6.000 72 3.000K – 4.000K – 6.500K
LGT.10.106.05 7.000 108 3.000K – 4.000K – 6.500K
LGT.10.106.06 8.000 144 3.000K – 4.000K – 6.500K

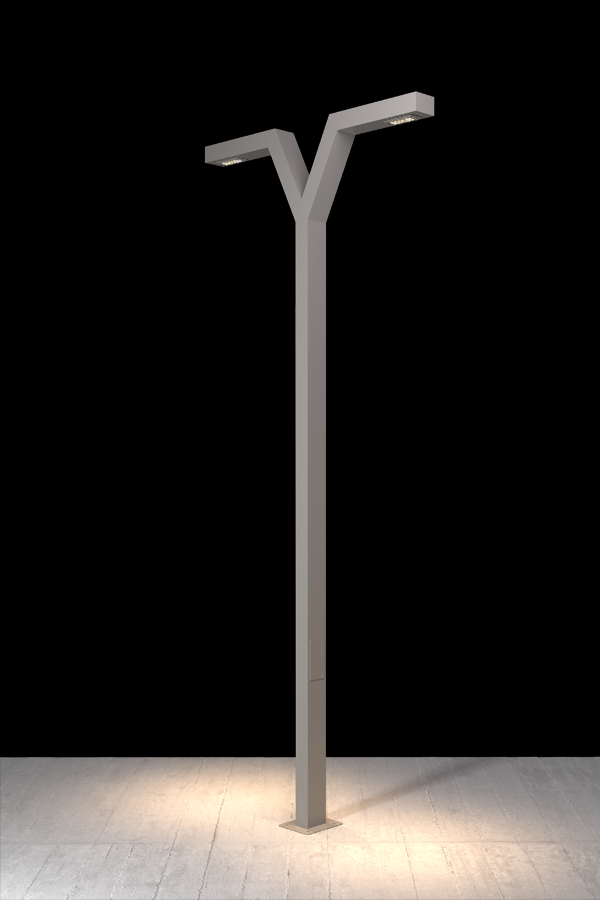

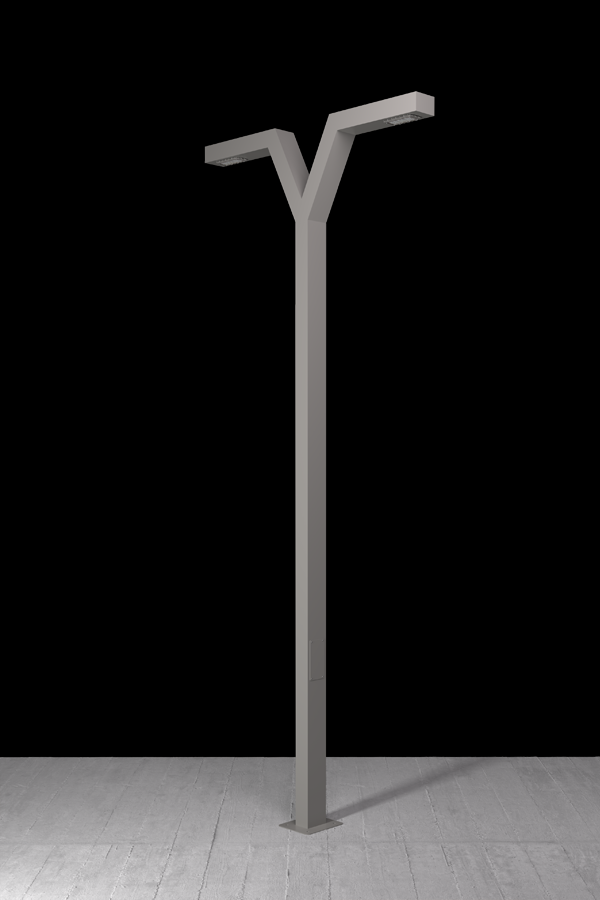

DOUBLE LIGHT POLE – V DESIGN
Pole Height ( mm ) System Power ( w ) Light Color (cct )
LGT.10.106.10 3.000 2 x 36 3.000K – 4.000K – 6.500K
LGT.10.106.11 4.000 2 x 36 3.000K – 4.000K – 6.500K
LGT.10.106.12 5.000 2 x 72 3.000K – 4.000K – 6.500K
LGT.10.106.13 6.000 2 x 72 3.000K – 4.000K – 6.500K
LGT.10.106.14 7.000 2 x 108 3.000K – 4.000K – 6.500K
LGT.10.106.15 8.000 2 x 144 3.000K – 4.000K – 6.500K
